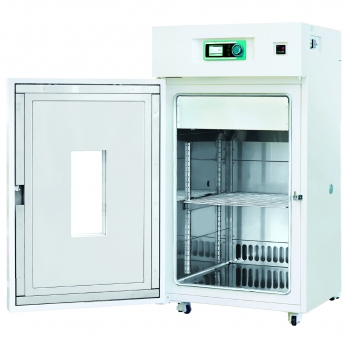

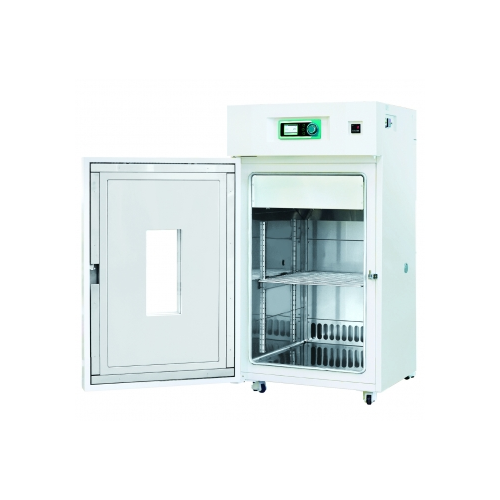

Programmable model (OFC-P/PH)

• 10 programs available for temperature ramp up and dwell control.

Class 100 cleanliness is achieved by HEPA filter.

• 0.3 μm and larger particulates are removed with 99.97% efficiency, leak-tight HEPA filter which satisfying class 100.
• Easy HEPA filter condition check by a built-in front differential pressure.
• Real time monitor of HEPA filter is available.
  - Optional digital differential pressure gauge let users know when filter needs replacement.

Performance

• Rapid heating performance up to max. 300°C (for OFC-HP)and max. 200°C (for OFC-P)
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning.
• Forced air convection generated by two noiseless and powerful sirocco fans ensures optimal air circulation, temperature uniformity, and short heat-up time.
• Adjustable dual slide vents for inner vapour circulation.
• Energy efficiency is achieved thanks to optimisation of the insulation system.
  - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures.

Convenience

• Optimum model selection is available according to two different types of control panel.
  - Intuitive touch screen LCD controller with easy icons and logical menus. (for OFC-P/HP)
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Convenient presetting function for 3 most commonly used temperature settings.
• Rounded inner chamber corners for easy cleaning and optimal airflow.
• Corrosion-resistant incoloy sheath heating element and stainless steel interior.
• Threefold tempered-glass window provides clear inside view of the chamber. (optional)
• USB port and RS-232 port for external control and data collection.
• Casters for easy mobility during installation or relocation.

Safety

• Automatic run after power interruption.
• Over-current protection.
• Triple independent temperature monitor system.
  -Temperature deviation alarm. (High/Low)
  -Electronic temperature limiter.(High/Low)
  -Mechanical over-temperature limiter.(High)
• Alarms for open door status, temperature sensor error and temperature deviation.
• Keypad lock function prevents accidental changes during operation.

For more information, visit JeioTech.com.
